The Next Membrane
for Water Treatment
HYOSUNG MEMBRANE

Membrane for water treatment to address the global water scarcity problem
Membrane for water treatment

Providing a total solution for supplying clean and safe water

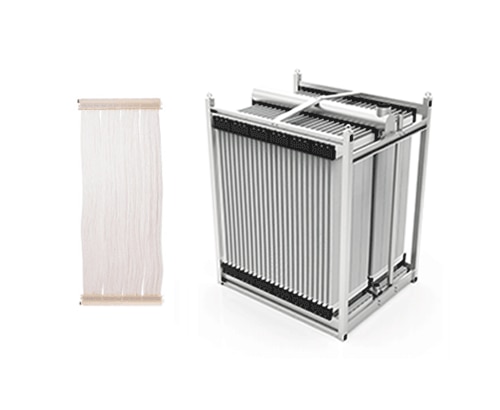

A submerged hollow fiber membrane
suitable for various applications as a key material in the water treatment industry

Hyosung’s hollow fiber (HF) products, including HSF-BS and HSF-MBR, are reinforced hollow fibers with high tensile strength, high permeability and high removal efficiency, suitable for various water sources.

Pressurized hollow fiber membrane incorporating
Pressurized hollow fiber membrane

Hyosung’s HSF-CP applies a unique radiation technology with a composite membrane structure using NIPS and TIPS methods. It possesses excellent durability, chemical resistance, high permeability and removal efficiency.

가압형 중공사막, 침지형 중공사막의 기술수준, 막인증/환경신기술인,검증실적, 시공실적 정보
	Pressurized hollow fiber membrane	Submerged hollow fiber membrane
	Pressurized hollow fiber membrane	Submerged - for municipal water treatment	Submerged - for wastewater treatment
Technical level	World’s highest operating flux (80 LMH) Land savings, high productivity High recovery rate (97%) and membrane fouling resistance (average pore size 0.03 μm) Safe and stable treatment With high durability (Tensile Strength 10 MPa) Operating reliability	Low energy consumption (40% savings) 40% reduction in operating energy World’s highest operating flux (60 LMH) 1.5 times higher productivity High recovery rate (95%, 1st stage filtration) 30% reduction in discharge volume	High-density modules and cassette Membrane area (module 40㎡, cassette 1,920㎡) Various expandable Membrane areas ranging from 320 to 2,560㎡ Application of high-strength material Polyketone
Membrane certifications/ environmental technology certifications	April 2013: Membrane module certification for water supply (KWWA-13-02) June 2016: Membrane module certification for water supply (KWWA-16-04) October 2016: Environmental technology certification (No. 214) October 2017: Technology verification (No. 534)	March 2011: Membrane module certification for water supply (KWWA-11-02) October 2012: Environmental technology certification (No. 380) October 2013: Technology verification (No. 162) January 2018: Joint environmental technology certification/verification by K-water (No. 538/220)
Installation Performance	Paju Sewage Water Reuse (48,000㎥/day) Hyosung Yongyeon Plant Industrial Water (1,000㎥/day) Bupyeong Water Purification Plant Pilot (465㎥/day) Singapore PUB Seawater Desalination Pretreatment (200㎥/day) Myeongjang (Busan) Water Purification Plant (250㎥/day) Siheung Water Purification Plant (200㎥/day) North Jeju Thermal Power (Korea Midland Power) Water Purification Facility (1,700㎥/day) Hanam Sewage Water Reuse (300㎥/day) Gangjeong (Jeju) Water Purification Plant (25,000㎥/day) Topyeong (Jeju) Water Purification Plant (12,400㎥/day) Chuja (Jeju) Water Purification Plant (4,200㎥/day)	Gongsan (Daegu) Water Purification Plant (20,000㎥/day) Yeongdeungpo (Seoul) Water Purification Plant (5,000㎥/day) Hohyeong (Goheung) Water Purification Plant (3,600㎥/day) Hyosung Anyang Plant Water Treatment Pilot (750㎥/day) Daejeon K-water (250㎥/day)	E1 Factory Wastewater Treatment MBR (400㎥/day) Cheongyang Livestock Wastewater Treatment MBR (30㎥/day)

Pressurized hollow fiber membrane

Membrane technology

World’s highest level of operating flux
High recovery rate, membrane fouling resistance
High durability

Applicable areas

Water purification for drinking water production
Control water for replacing insufficient water resources
Ultra-pure water production for the electronics and pharmaceutical industries
Seawater desalination for industrial and drinking water production

High durability
High permeability, fouling resistance

Applicable areas

Treatment and discharge of polluted water in sewage treatment

High-density technology
High permeability, fouling resistance

Applicable areas

Treatment and discharge of polluted water in sewage treatment

Product Application Example

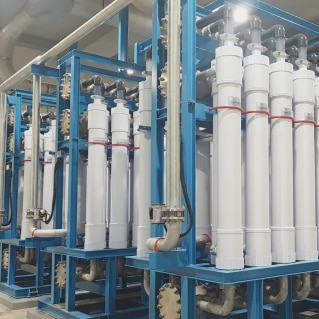

Paju Wastewater Reuse
Project	Paju Wastewater Reuse
Customer	LG HITACH WATER SOLUTION
Capacity	48,000㎥/day
Raw water	Effluent of Paju Wastewater Treatment System
Operation	From Apr. 2018
Membrane	Pressurized (HSF-CP75)
Application	Industrial Water, Reuse, Pretreatment of RO

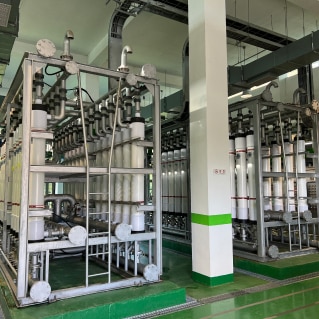

Yongyeon Plant Industrial Water
Project
Customer	HYOSUNG Yongyeon 2 Plant
Capacity	1,000㎥/day
Raw water	Lake Water
Operation	From Jan. 2015
Membrane	Pressurized (HSF-CP75)
Application	Potable Water, Pretreatment of UPW

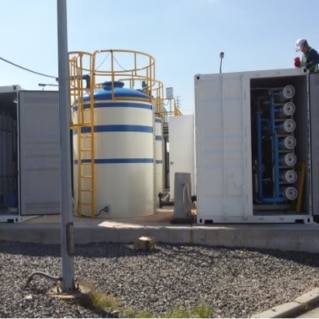

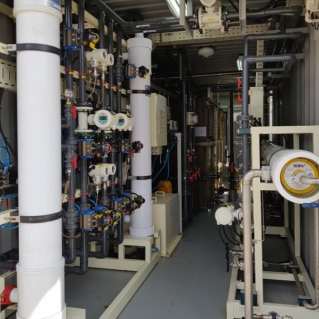

PUB Desalination
Project	PUB Desalination
Customer	PUB, Singapore
Capacity	200㎥/day
Raw water	Sea Water
Operation	Jan. 2017 ~ Dec. 2017
Membrane	Pressurized (HSF-CP75)
Application	Pretreatment for Desalination
